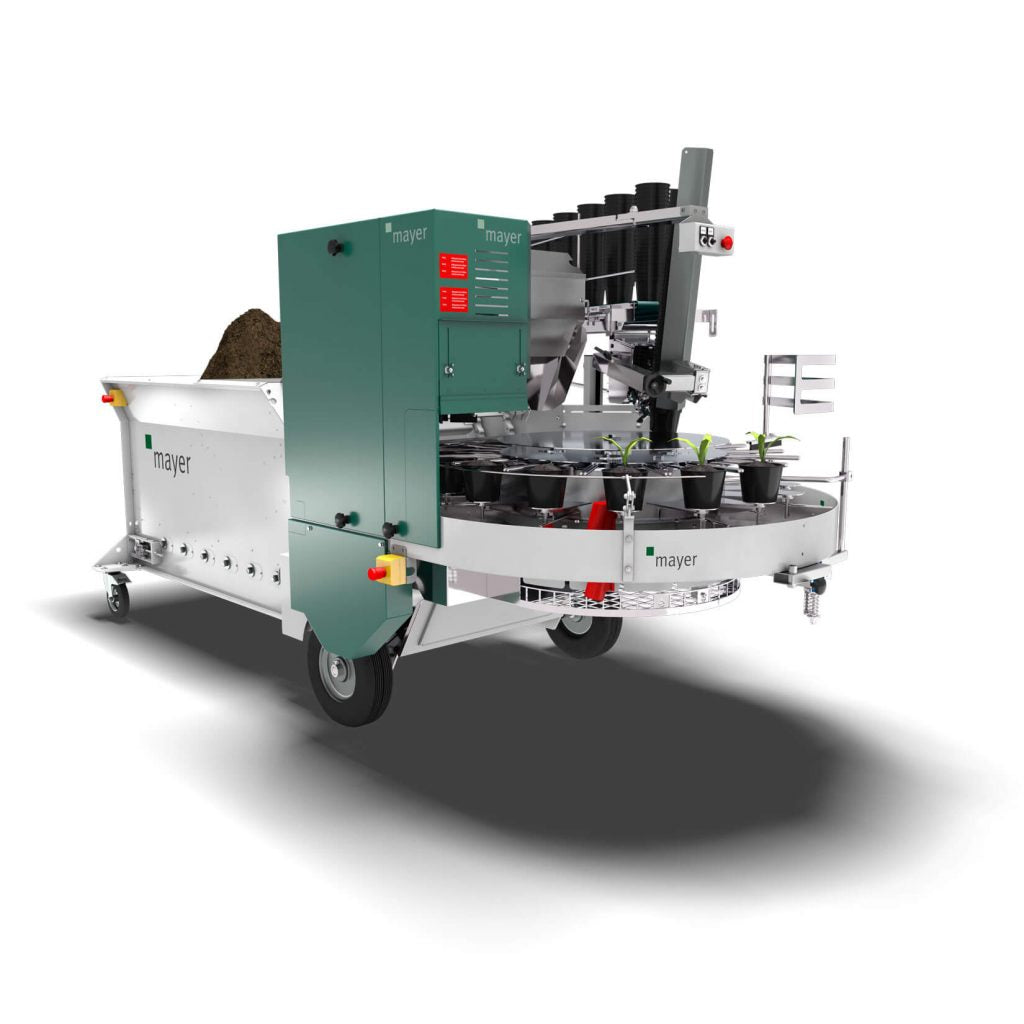

Outstanding planting quality requires sustained favourable conditions for cultivation. The potting machine TM 1010F creates these optimally by consistently drilling accurate, central planting holes. The exact coordination of pot position and pot transfer is fully synchronised. The high degree of mechanical precision also ensures the processing quality of subsequent stations or systems (e.g. automatic planting machines).

Increased productivity is coupled with particularly convenient handling and controls with the potting machine TM 1010F: for example, the centrally adjustable pot holder causes considerably reduced set-up times when adapting to different pot diameters. The electronic frequency controls for the turntable and elevator ensure precise output control and are easy to operate via the control panel within the working area. Additional frequency converters for soil conveyor, drill motor and conveyor belt are available with surcharge.

Key Benefits and Features:

High performance potting machine for large ornamental plant producer

• Smooth movement of the turntable and very quiet operation even at top production rates

• Parallel separation and processing of two pots (round and square)

• Electronic adjustable speed of elevator and turntable by means of a frequency converter

• Pot heights can be adjusted fast and centrally by means of a ratchet (standard)

• Clockwise rotating model available (with surcharge)

• Numerous standard and special drills can be used

• Especially suitable for operation in machine lines

• Numerous equipment variants available for individual requirements

Technical Data:

Brand: Mayer

Machinery– model: Potting machine

Series: TM 1010F (Frequency controlled)

Length/ width/ height: 3570/ 1430/ 1700 mm

Working height: 85 cm

Weight: 920 Kg

Power connection: 400V/50Hz, 5-polig

Power input: 3,2 kW

Capacity of the soil hopper: 1,5 m³

Soil hopper extension (T16): up to 2,5m³

Soil hopper extension (T8): up to 5 m³

Pot size (round) T16 5 to 22cm Ø

Pot size (round) T8 15 to30cm Ø

Production speed: up to 4.000 Pots/ hour

Workplace related emission value: 73 dB (A)
